Pipe Flaring vs. Swaging: Benefits and Process Insights

Pipe flaring and pipe swaging are essential techniques for modifying pipe and tube ends for seamless connections and improved system performance. These processes are vital in industries like plumbing, HVAC, and automotive, each offering distinct methods and advantages.

At Kuber Auto Pressing, we specialize in delivering precision-engineered solutions through advanced pipe flaring processes and pipe swaging processes. Our expertise ensures optimal performance, reliability, and durability for your piping systems, tailored to meet your project’s specific needs.

What is Pipe Flaring?

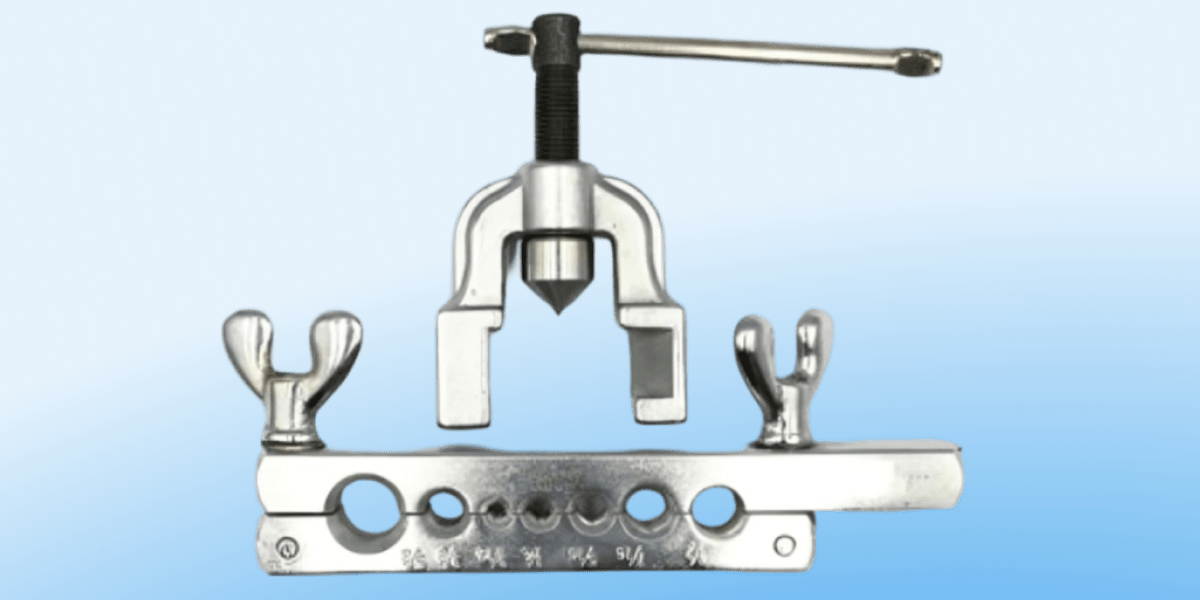

Pipe flaring is a process in which the end of a hard copper pipe or tube is expanded outward to form a conical shape. This double-flaring tool creates precision flares, allowing for secure connections with fittings and preventing leaks in high-pressure gas connections.

Pipe Flaring Process

Preparation: The pipe is cut to the desired length, and its end is deburred to remove sharp edges.
Clamping: The pipe is securely held in place using a flaring tool.
Flaring: A cone-shaped tool expands the pipe end to the desired angle (commonly 37° or 45°).
Inspection: The flared end is inspected for uniformity and smoothness to ensure a proper seal.

Benefits of Pipe Flaring

Leak-Proof Seals: Provides a tight, secure connection, ideal for high-pressure applications.
Ease of Assembly: Allows for quick and straightforward installation.
Versatility: Suitable for various materials, including copper, aluminum, and stainless steel.
Durability: The flared connection withstands vibrations and thermal expansion.

Applications of Pipe Flaring

Automotive: Brake and fuel lines.
HVAC Systems: Refrigerant and cooling lines.
Plumbing: Connections in gas and water lines.

What is Pipe Swaging?

Pipe swaging is a process that reduces the diameter of the hard copper pipe end, creating a tapered or conical shape. This allows the copper tubing to fit snugly into another pipe or fitting, forming a strong mechanical connection.

Pipe Swaging Process

Cutting and Cleaning: The pipe is cut to size and cleaned to remove debris.
Heating (Optional): For certain materials, heating the pipe makes it more malleable.
Swaging: The pipe end is placed into a swaging tool, which compresses it into the desired tapered shape.
Testing: The swaged connection is tested for fit and strength.

Benefits of Pipe Swaging

Enhanced Strength: Creates a mechanically strong joint without additional fittings.
Cost Efficiency: Reduces the need for couplings or additional materials.
Customizable: Can be tailored to specific pipe diameters and shapes.
Ease of Connection: Simplifies the assembly of pipelines.

Applications of Pipe Swaging

Construction: Structural piping and scaffolding.
Manufacturing: Hydraulic and pneumatic systems.
Aerospace: High-pressure tubing for aircraft systems.

Pipe Flaring vs. Swaging: Key Differences

Aspect	Pipe Flaring	Pipe Swaging
Purpose	Expands the pipe end for a secure connection.	Reduces the pipe end diameter for snug fitting.
Shape	Conical outward expansion.	Tapered or conical inward reduction.
Material Compatibility	Copper, aluminum, stainless steel.	Steel, brass, aluminum, copper.
Common Angle	37° or 45° for flared ends.	Customizable taper based on fitting.
Applications	High-pressure systems like HVAC and automotive.	Structural and industrial piping systems.
Strength	Relies on fittings for strength.	Creates mechanically strong joints without fittings.
