In distillation and chemical processing, choosing the right type of tray for your distillation column is crucial for efficiency and effectiveness. Two popular types of trays are valve trays and bubble cap trays. This blog will provide a comprehensive comparison between valve trays and bubble cap trays, helping you make an informed decision for your specific needs.

What are Valve Trays?

Valve trays are a type of tray used in distillation columns to facilitate the separation of different components in a mixture. They consist of a perforated plate with movable valves that regulate vapor flow through the liquid on the tray. The design of valve trays allows for flexibility and efficiency in handling various operating conditions.

Advantages of Valve Trays:

Flexibility: Valve trays can operate efficiently over a wide range of flow rates, making them suitable for variable operating conditions.
Efficiency: The adjustable nature of the valves allows for better vapor-liquid contact, improving separation efficiency.
Durability: Valve trays are less prone to fouling and plugging, ensuring longer operational life and reduced maintenance costs.

Applications of Valve Trays:

Petrochemical processing
Chemical manufacturing
Oil refining

What are Bubble Cap Trays?

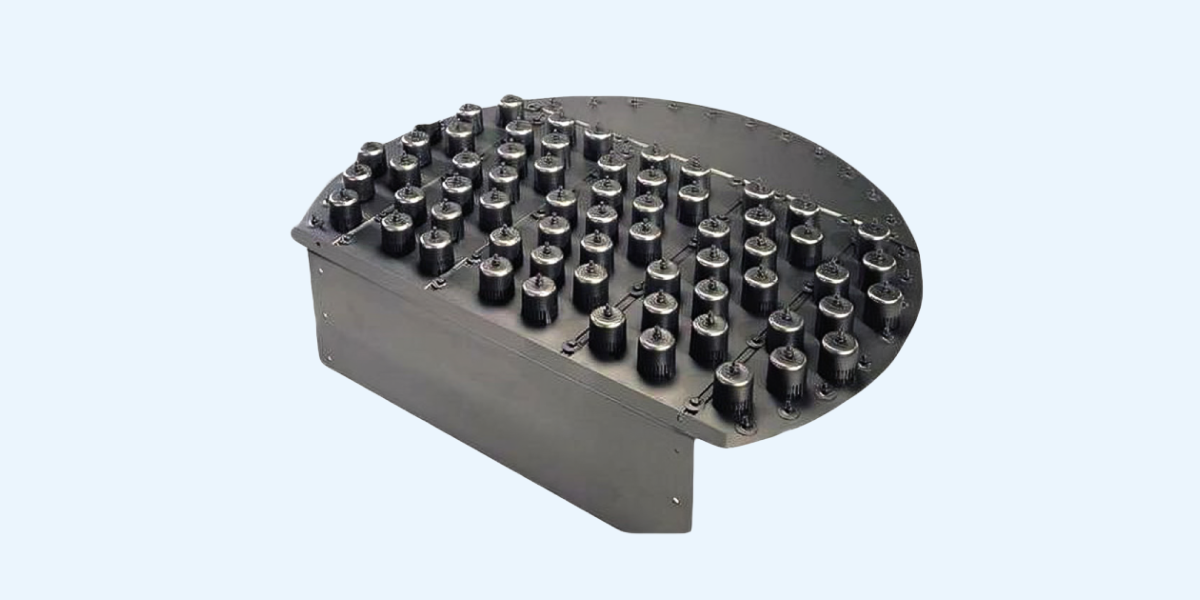

Bubble cap trays are another type of tray used in distillation columns. They consist of a series of caps mounted on risers over the holes in the tray deck. Vapor rises through the risers and is directed downward through the slots in the caps, creating bubbles in the liquid on the tray. This bubbling action enhances the vapor-liquid contact, which is essential for effective separation.

Advantages of Bubble Cap Trays:

Stable Operation: Bubble cap trays can maintain stable operation at low flow rates, making them ideal for systems with low liquid loads.
Effective Vapor-Liquid Contact: The design ensures thorough mixing and contact between vapor and liquid, leading to efficient separation.
Versatility: Suitable for many distillation processes, including those involving complex mixtures and high-pressure systems.

Applications of Bubble Cap Trays:

Fractional distillation in chemical plants
Alcohol production
Pharmaceutical manufacturing

Valve Tray vs. Bubble Cap Tray: Key Differences

Criteria	Valve Trays	Bubble Cap Trays
Operating Range	Broad operating range efficiently handles fluctuations in flow rates.	Perform well at lower flow rates, less efficient at handling high fluctuations.
Maintenance	Requires less maintenance due to simpler design and reduced susceptibility to fouling.	Requires more maintenance due to potential fouling and plugging, especially with heavy or viscous liquids.
Efficiency	High efficiency due to adjustable valves enhancing vapor-liquid contact.	Efficient, particularly at lower flow rates, but less adaptable than valve trays.
Cost	Generally lower initial cost and lower maintenance costs over time.	Higher initial cost and potentially higher maintenance costs due to complexity.
Flexibility	Highly flexible, suitable for a wide range of operating conditions and easy to adjust for different operations.	Less flexible, and designed for specific operating conditions, adjustments can be complex and limited.
Pressure Drop	Lower pressure drop, resulting in better energy efficiency and operational costs.	Higher pressure drop, which can increase operational costs and energy consumption.
Installation	Easier and quicker to install due to simpler design and fewer parts.	More complex installation process due to the intricate design and numerous components.
Capacity	Can handle higher capacities, making them suitable for large-scale operations.	Better suited for smaller capacities or specific low-flow applications.
Durability	Robust and durable, with fewer components susceptible to wear and tear.	Durable but may have more components that can wear out or fail over time.
Application	Widely used in various industries, including petrochemical, chemical, and refining processes.	Commonly used in distillation and absorption processes where precise control at low flow rates is needed.

Conclusion

Choosing between valve trays and bubble cap trays depends on your specific distillation needs and operational conditions. Valve trays offer flexibility, efficiency, and durability, making them suitable for a wide range of applications. On the other hand, bubble cap trays provide stable operation and effective vapor-liquid contact, especially in low flow rate scenarios.

Understanding the key differences and advantages of each tray type will help you make an informed decision, ensuring optimal performance and efficiency in your distillation processes. Whether you’re in petrochemical processing, chemical manufacturing, or pharmaceutical production, selecting the right tray is essential for achieving the best results.
